75kVA Single Phase Pole Mounted Transformer

This 75kVA single-phase pole-mounted oil-immersed transformer combines high reliability of oil-immersed insulation with space-saving pole-mounted installation, delivering a stable and cost-effective power solution for single-phase load scenarios at the distribution network terminal.

Contact

single phase pole mounted oil immersed transformer 75kVA

Specifications and Parameters

Parameter	Details
Rated Capacity	75 kVA
Maximum No Load Losses	225 W
Maximum Load Losses	750 W
Primary Bushings	15 kV Cover Mount (Qty:2)
Secondary Bushings	15/16 Eyebolt with 3/4-10 stud Secondary Bushing (Qty:3)
Taps	1-2 1/2% tap above nominal, 3-2 1/2% taps below nominal
Primary Voltage	2400 V - 34500 V
Exciting Current @100%	≤ 0.6%
Reg.@0.8 Pwr Factor	≤ 2.4%
Configuration	Standard Design
Mounting Provisions	Hanger Brackets (One Set)
Temperature rise	65 °C
Cooling Class	ONAN
Insulating fluid	Mineral Oil
Frequency	60 Hz
Efficiency Standard	None
Primary Voltage	12470V Grd Y / 7200 V
BIL	95 kV
kV Class	15 kV
Secondary Volitage	120 / 240 V
BL	30 kV
kV Class	1.2 kV
Coatings	ANSI70 Gray (Munsell 5BG7.0/0.4) topcoat
Gauges &Fittings	PRD, 35 SCFM (std)

Specification Range

Capacity (KVA)	High Voltage (V)	Tapping Ranges	Low Voltage (V)	Loss (W)		Dimension (mm)			DOE 2016 Efficiency
Capacity (KVA)	High Voltage (V)	Tapping Ranges	Low Voltage (V)	No-load Loss (W)	On-load Loss (W)	W	D	H	DOE 2016 Efficiency
10	2400 4160 7200 7620 12000 12470 13200 13800 14400 19920 24940 34500	±2x2.5%	110 120 208 240 277 347 415 416 480 600 690	60 80 100 120 130 150	330 370 450 620 850 1150	500	525	885	98.70
15						520	565	905	98.82
25						560	590	935	98.95
37.5						610	625	935	99.05
50						635	675	1035	99.11
75						745	840	1035	99.19
100						770	965	1035	99.25
167						795	890	1035	99.33
250						988	1001	1035	99.39
333						1012	1015	1035	99.43

Drawing and Accessories

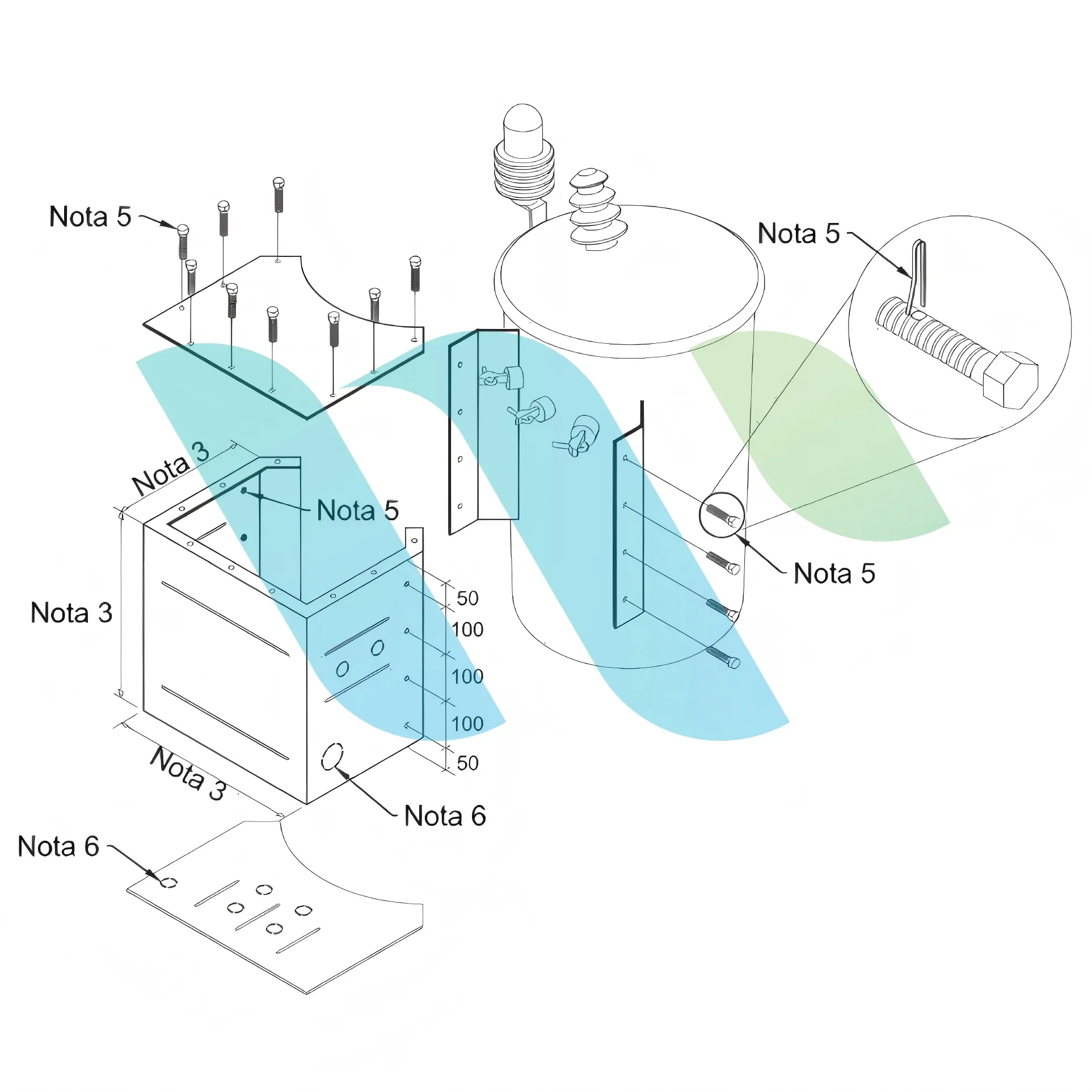

pole mounted transformer drawing

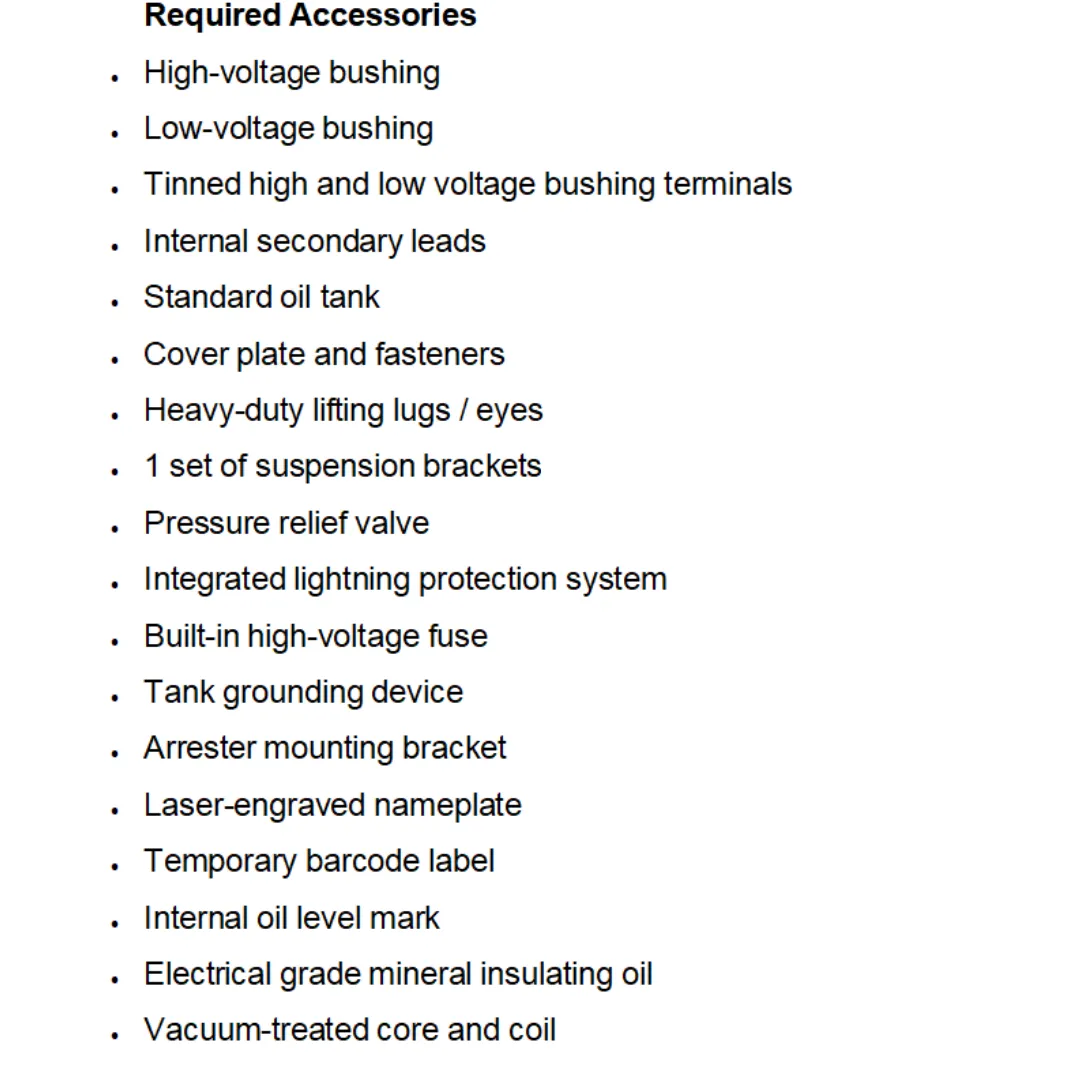

pole mounted transformer accessories

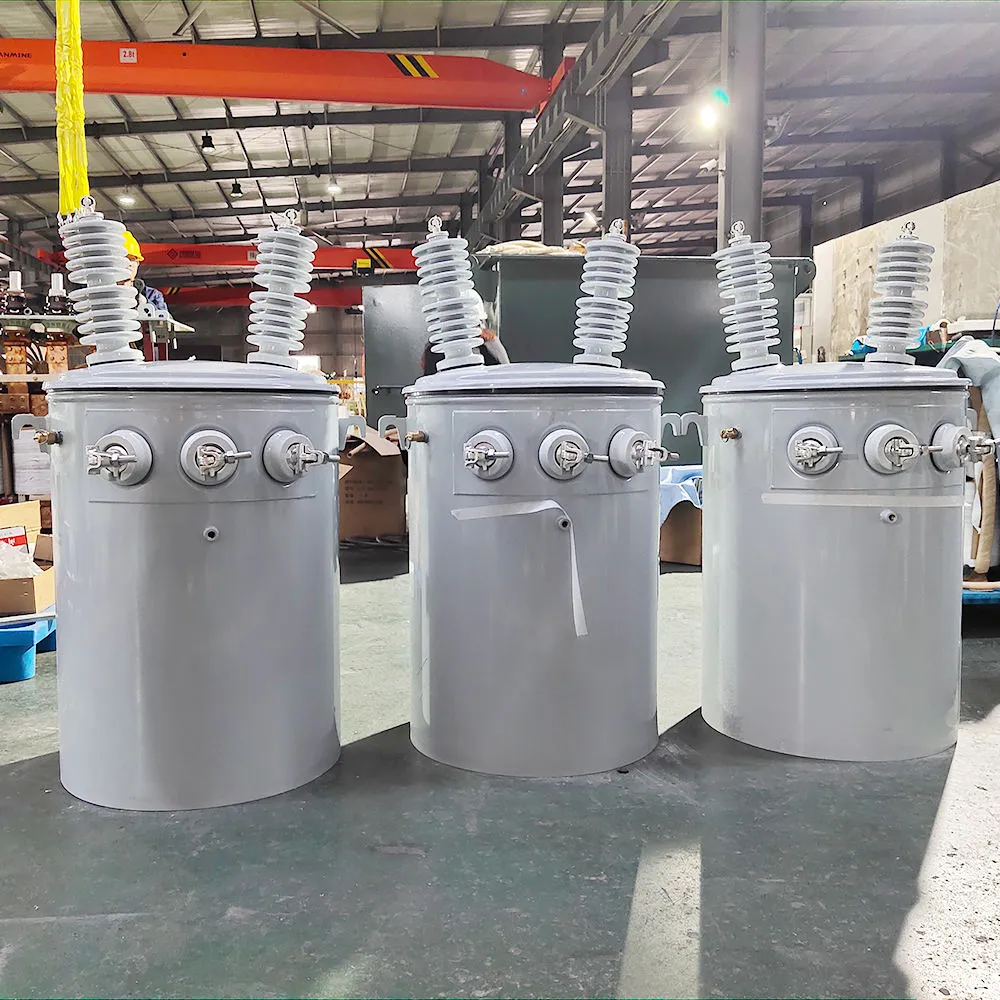

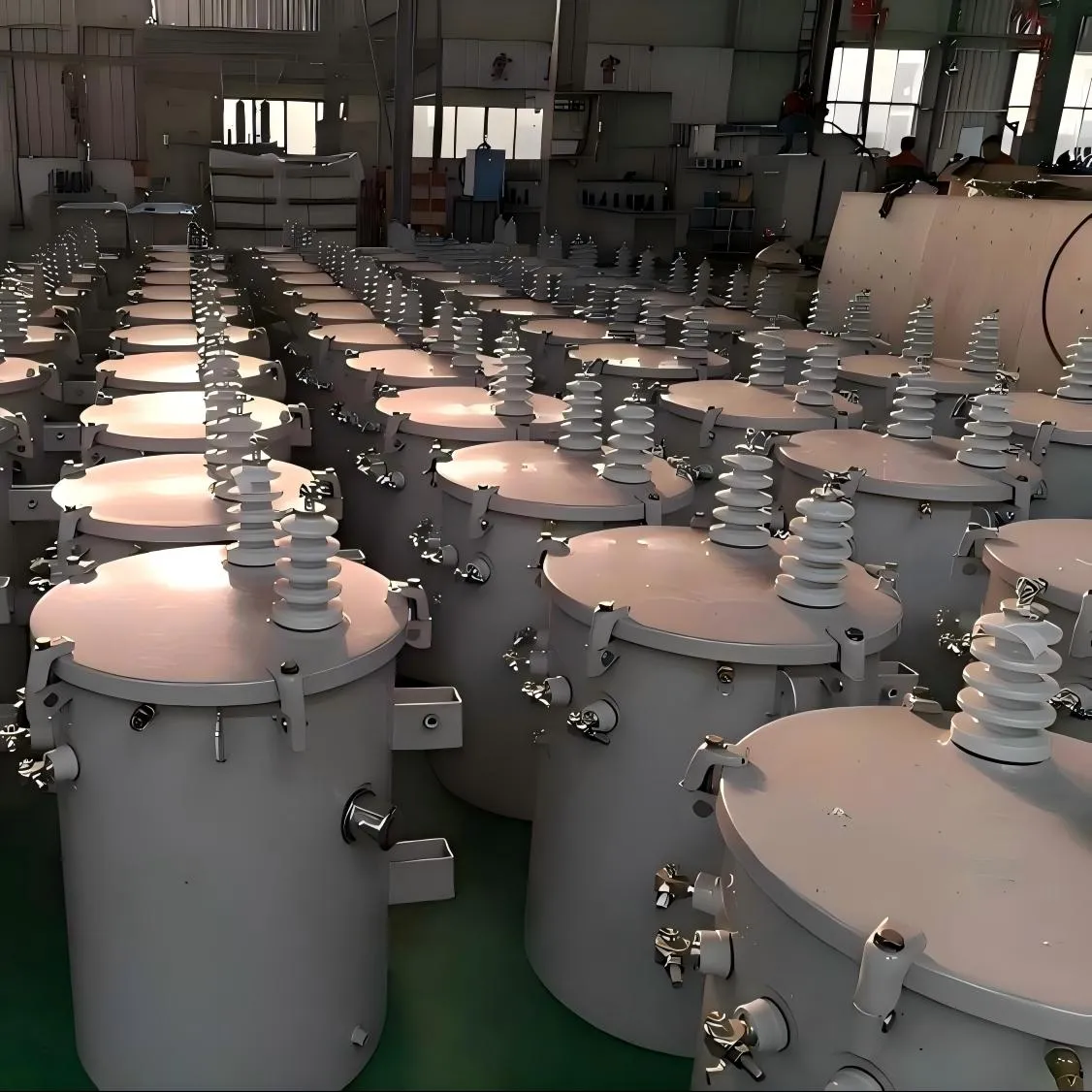

Factory Production Photos
