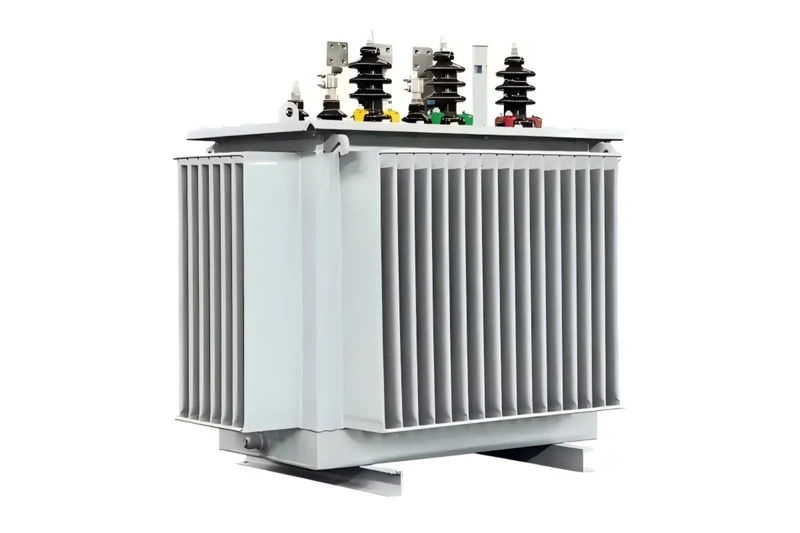

Huawan Distribution Transformer product line includes 3.3kV, 10kV, 20kV, and 33/35kV oil-immersed types, available in both single-phase and three-phase configurations. These electric distribution transformers are widely used in urban and rural power distribution networks. As a professional distribution transformer suppliers, we offer standard and customized models ranging from 50kVA to 5000kVA. The transformer cores are made of high-grade cold-rolled silicon steel, and windings are available in copper or aluminum options. All units are designed for high efficiency, low loss, and long service life, with optional accessories for protection and monitoring. Our products fully comply with IEC, ANSI, and GB standards, making them suitable for global power projects.
1.High-voltage power enters through the primary winding of the high voltage distribution transformer and creates a magnetic field in the iron core.
2. Through electromagnetic induction, voltage is stepped down across the secondary winding.
3. The stepped-down voltage is delivered by the electric distribution transformer to low-voltage distribution transformer substation networks for end-user consumption.
4. During operation, heat is generated and dissipated by oil filled distribution transformers or air cooling systems.
5. Insulation and protection systems in the distribution transformer design ensure safety and stable performance across various distribution transformer applications.
6. Optional sensors in modern switchgear and transformer types provide real-time monitoring of temperature, load, and oil levels for enhanced reliability.
Huawan distribution transformers offer high efficiency, low loss, and reliable performance across various voltage levels, making them ideal for diverse distribution transformer applications. With robust distribution transformer design, including high-quality insulation, they ensure safe and stable power delivery in both urban and rural distribution transformer substations. These oil immersed distribution transformers feature customizable capacities and optional copper or aluminum windings, allowing for tailored distribution transformer selection to meet specific needs. Huawan distribution transformer manufacturer ensures products fully complied with IEC and ANSI standards, which are designed for a long service life with minimal maintenance.
The distribution transformer plays a critical role in stepping down high voltage distribution transformer levels from transmission lines to safer, usable voltages suitable for distribution transformer applications in residential, commercial, and industrial settings.
Oil immersed distribution transformers, designed by leading distribution transformer manufacturers, minimize energy loss over long distances by optimizing voltage levels, enhancing the efficiency of electric distribution transformer systems for reliable power delivery.
The distribution transformer function ensures balanced power distribution across various distribution transformer substations, maintaining stable voltage, reducing overload risks, and improving grid reliability through robust distribution transformer design.
A distribution transformer is a key device in the electric power distribution system that reduces medium voltage (typically 11, 22, or 33 kV) to safe, usable low voltage (such as 400/230 V or 480/240/120 V) before electricity reaches consumers. Installed near load centers—on poles, ground pads, or in underground vaults—it ensures efficient and reliable power delivery to homes, offices, and small industries. With ratings usually between a few kVA and about 2500 kVA, these transformers handle fluctuating loads (averaging 50–70% of capacity) and operate with high all-day efficiency (98–99%), focusing on minimizing no-load losses.
Distribution transformers are used in the distribution network (input typically up to about 33 kV) to step down voltage to safe, usable low levels for end users, are smaller and more compact, and are designed for fluctuating partial loads with high all day efficiency. Power transformers, by contrast, are used in high voltage transmission systems (usually 33 kV and above, up to 400 kV or higher) to step up or step down voltage for long distance transmission, handle much larger power ratings (often exceeding 200 MVA), and operate near full load with maximum efficiency at rated capacity.
Aspect | Power Transformer | Distribution Transformer |
Application | Transmission networks & substations | Final stage to end-users (homes, businesses) |
Voltage Levels | High (33 kV–765 kV+) | Medium to Low (up to 33 kV primary → 400/230 V secondary) |
Power Rating | High (typically >200 MVA) | Lower (usually <200 MVA, often 25–2500 kVA) |
Load Pattern | Near full load, continuous | Variable/fluctuating (50–70% average load) |
Efficiency Focus | Maximum at full load (low copper losses) | High all-day efficiency (low core/no-load losses) |
Size & Insulation | Larger, heavier, higher insulation level | Smaller, compact, lower insulation level |
Installation | Indoor/outdoor substations | Pole-mounted, pad-mounted, or vault |
Tap Changer | Often on-load (OLTC) | Usually off-load or fixed |
To choose the right oil immersed distribution transformer manufacturer, start by ensuring the company can meet your project's load, voltage level, cooling requirements, and site conditions. These factors determine the correct transformer design and rating. For outdoor or heavy-duty industrial use, oil immersed distribution transformers are often the preferred choice because they offer excellent heat dissipation, durability, and long service life. Trusted oil immersed distribution transformer suppliers can guide you to the best configuration for your environment.
When evaluating oil immersed distribution transformer manufacturers, confirm that the company provides IEC or IEEE-compliant designs, complete test reports, loss data, technical drawings, and detailed protection schemes. Experience is crucial—especially for utilities, renewable power projects, or customized industrial applications. If your project is international, working with a reliable distribution transformer exporter ensures smooth logistics and compliance with global standards.
A reputable distribution transformer manufacturer in China should assist you in correctly sizing your transformer based on both current and future load demands. They should offer recommendations for capacity, tap range, insulation class, and the most effective cooling method. Look for strong engineering support, proven testing procedures, and dependable after-sales service. Choosing a qualified oil immersed distribution transformer manufacturer helps minimize lifetime operating costs and ensures consistent, long-term performance.
