Iraq is in a "golden dual dividend period" of post-war reconstruction and energy transition. The Iraqi government has designated power infrastructure as the core of national rejuvenation, targeting to increase power generation capacity from the current 25-30 gigawatts (GW) to 57,000 megawatts (MW) and achieve 12 GW of renewable energy installed capacity by 2030. This ambitious blueprint has directly driven explosive demand for distribution transformers, especially core power ratings including 100kVA, 250kVA, 400kVA, 630kVA, and 1000kVA, which have become the cornerstone of urban power grid upgrading, oil and gas industry support, and new city construction.
The growth of Iraq's transformer market is driven by two core threads: "addressing shortcomings (power grid reconstruction)" and "pursuing transformation (energy diversification)", combined with international capital and technical support, forming a clear demand growth logic.
Strong national policy traction: The Iraqi government regards power infrastructure as the "core of post-war rejuvenation" and has proposed two key goals: first, to break through 57,000 MW in power generation capacity (currently only 25-30 GW); second, to achieve 12 GW of renewable energy installed capacity by 2030 (including 10 GW of photovoltaic power). To achieve these goals, the government has launched an infrastructure plan with a total investment exceeding 450 billion US dollars, covering landmark projects such as the "Development Road" (17 billion US dollars, 1200 km electrified railway + industrial parks) and power grid upgrading (5 billion US dollars for transmission and distribution network renovation), directly stimulating transformer procurement demand.
Rigid demand from industrialization and urbanization: As a pillar industry, Iraq's oil and gas sector has increased Basra Port's oil export capacity to 2 million barrels per day. Oilfields, refineries, and gas processing plants (targeting elimination of gas flaring by 2028) require a large number of industrial-grade transformers. Meanwhile, population growth (youth rate exceeding 60%) and new city construction (e.g., Estithmar Holding's 7 billion US dollar new city project) have driven distribution network renovation in residential areas and commercial centers, spurring demand for medium and low-voltage transformers.
Grid pain points forcing equipment renewal: Iraq's transmission and distribution losses exceed 30%, with prominent issues of aging and overloaded power grids. Data from the Ministry of Electricity shows that addressing the supply-demand gap (16.6 GW in 2023) and reducing losses alone require over 10,000 new distribution transformers and thousands of high-voltage power transformers.
Transformer demand in Iraq is highly dependent on application scenarios, with distinct requirements for product specifications, performance, and certifications across different sectors. Core demand can be divided into four categories:
Transformer demand in Iraq is closely tied to application scenarios. Below is the market positioning of mainstream 100kVA-1000kVA models:
1. 100kVA-250kVA: Rural Electrification and Remote Area Challenges
A large number of rural areas in Iraq still face unstable power supply. For small-capacity transformers (100kVA and 250kVA), the core demand lies in "high reliability and low maintenance costs":
Easy installation: These models often adopt pole-mounted installation. Huawan has optimized the hoisting structure to enable rapid deployment in remote areas lacking large lifting equipment.
Sand-proof sealing technology: Iraq experiences frequent sandstorms, where fine particles can easily enter the cooling oil tank and degrade insulation oil. Our products feature a fully sealed corrugated oil tank design with a protection rating of IP65 or higher, ensuring 25 years of maintenance-free operation without oil replacement.
2. 400kVA-630kVA: Core of Urbanization and "Development Road" Projects
With the surge in population (youth rate exceeding 60%) and commercial center construction in major cities like Baghdad, 400kVA and 630kVA models have become the absolute mainstays of distribution network renovation:
Summer air conditioning load peaks: Air conditioning load accounts for 65% of the total grid load in Iraq's summer. Huawan transformers offer strong overload capacity (short-term overload factor up to 1.5x), ensuring core components are not damaged even during heatwaves and surging air conditioning demand.
Noise reduction and environmental requirements: For residential use, our products control noise below 55dB (refer to 400kVA specification sheet) through optimized core lamination technology, far outperforming local aging equipment.
3. Industrial and Oil & Gas Sectors (1000kVA and 30kV+ Medium-Voltage Transformers)
In Iraq, industrial power demand is highly concentrated in the oil and gas industry. As a national pillar industry, it is one of the most important application areas for industrial-grade transformers. In oilfields, refineries, and large new city construction projects, 1000kVA distribution transformers and 30kV (33kV) and above medium-voltage power transformers are usually configured as a system, jointly forming the main power supply and auxiliary distribution system for oil and gas projects.
Taking projects related to Basra Oil Company (BOC) as representatives, the typical power architecture of oil and gas facilities includes:
30kV/33kV and above medium-voltage power transformers: Mainly used in centralized oilfield substations, gas processing plant main power stations, and refinery parks, importing medium and high-voltage power from the national grid or captive power plants into oil and gas production areas to achieve regional power supply and load distribution.
1000kVA distribution transformers (auxiliary and end distribution): Widely used in oilfield associated gas processing plants (GPP, CPF), compression stations, pump stations, and control systems, providing stable and reliable low-voltage power for process equipment, control rooms, lighting, and public facilities.
As the Iraqi government aims to gradually reduce and eliminate gas flaring by 2028, a large number of newly built and expanded gas processing facilities continue to drive procurement demand for 1000kVA and above distribution transformers.
Adaptation to high-temperature, high-humidity, and flammable environments: In southern oil and gas production areas such as Basra, equipment must operate long-term in complex conditions of high humidity, high salt spray, and flammable gases.
Tailored to oil and gas project needs, Huawan equips 30kV+ medium-voltage transformers and 1000kVA distribution transformers with explosion-proof electrical accessories and wiring systems complying with IEC 60079, and applies C5-class anti-corrosion coating systems to oil tanks and enclosures, significantly enhancing equipment safety and service life in oil and gas environments.
Targeting Iraq's harshest operating conditions, Huawan's 400kVA oil-immersed distribution transformer (11/0.416-Dyn11) is fully designed to meet local Ministry of Electricity standards.
1. Excellent Performance in Extreme High Temperatures
Iraq's summer surface temperatures often exceed 60°C. Huawan's 400kVA product is specially designed with a cooling system adapted to 55°C ambient temperatures:
Temperature rise control: Oil temperature rise of 45K and winding temperature rise of 50K ensure no overload shutdown in extremely hot climates.
Hot spot temperature: The hottest spot temperature is controlled below 115K, greatly extending the transformer's insulation life.
2. High Energy Efficiency and Low Loss Design
In response to the Iraqi Ministry of Electricity's policy to reduce transmission losses by 30%, the product features in-depth energy efficiency optimization:
Efficiency performance: Up to 98.90% efficiency at 75% load and 98.70% efficiency at 100% load.
Loss control: Iron loss at 100% rated voltage is only 0.88 kW, with total loss controlled at 5.25 kW.
Figure 1. Huawan 400kVA Oil Immersed Transformer for Iraq Project, 11/0.416kV, 55 Degree Ambient.
3. New Energy Grid Integration
Iraq boasts high-quality photovoltaic resources with annual irradiance exceeding 2000 kWh/m². For gigawatt (GW)-scale photovoltaic projects, Huawan has launched photovoltaic and energy storage transformers:
Smart PV Transformer Station - 8950:
￮ Extreme heat resistance: Our design perfectly adapts to extreme ambient temperatures of 50°C+ (even harsh scenarios with surface temperatures exceeding 60°C).
￮ Sandstorm defense system: Equipped with a dedicated anti-sand coating and IP66 protection rating, ensuring long-term operation in sandstorm-prone areas such as the Masdar 1GW photovoltaic project.
Figure 2. box transformer MVS8960-LV
BESS Transformers (Energy Storage Supporting Transformers):
Designed specifically for shopping malls and factories in cities like Baghdad, featuring low loss and fast response to ensure voltage stability during energy storage system discharge.
We recognize that COSQC certification (Central Organization for Standardization and Quality Control of Iraq) is the "pass" for suppliers to enter the local market.
Assisting customers in certification acquisition: Huawan maintains complete factory quality system records and laboratory reports complying with IEC 60076. We will fully support customers in preparing test samples, technical documents, and factory audits to facilitate the smooth acquisition of COSQC certificates and MoE (Ministry of Electricity) access.

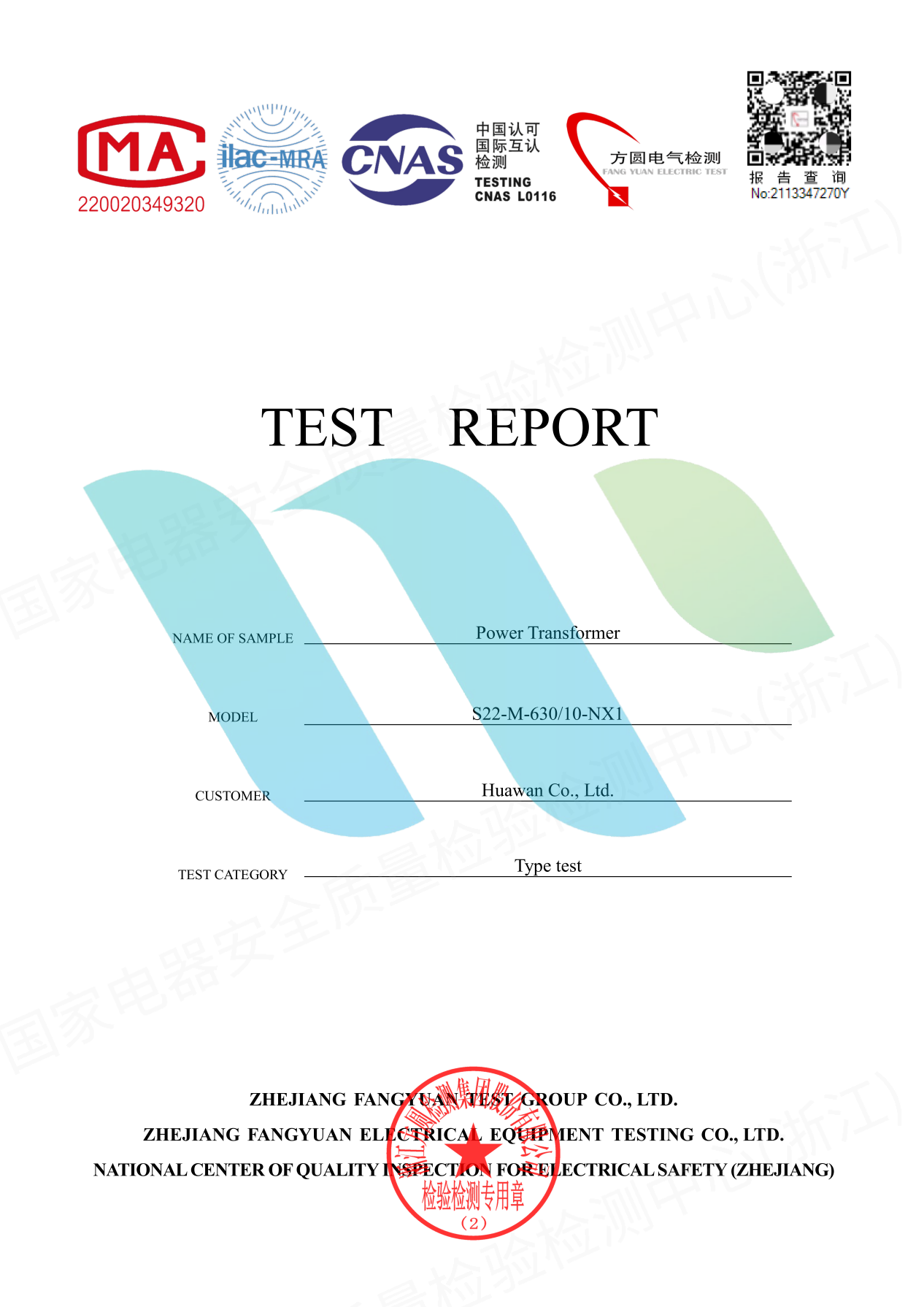

Figure 3. Type Test Report- 630kVA
Mainstream international standards: Our products hold CE (EU safety certification) and ISO 9001 certification.
Third-party supervision cooperation: We support on-site supervision and load testing by international third-party institutions such as SGS and BV, ensuring every transformer delivered to the site is in optimal condition.
High-efficiency transformation: The Iraqi government plans to mandate "Efficiency Class II" starting from 2026. Huawan's 100-1000kVA high-efficiency models have completed technical upgrades in advance, ensuring customer projects remain compliant over the next five years.

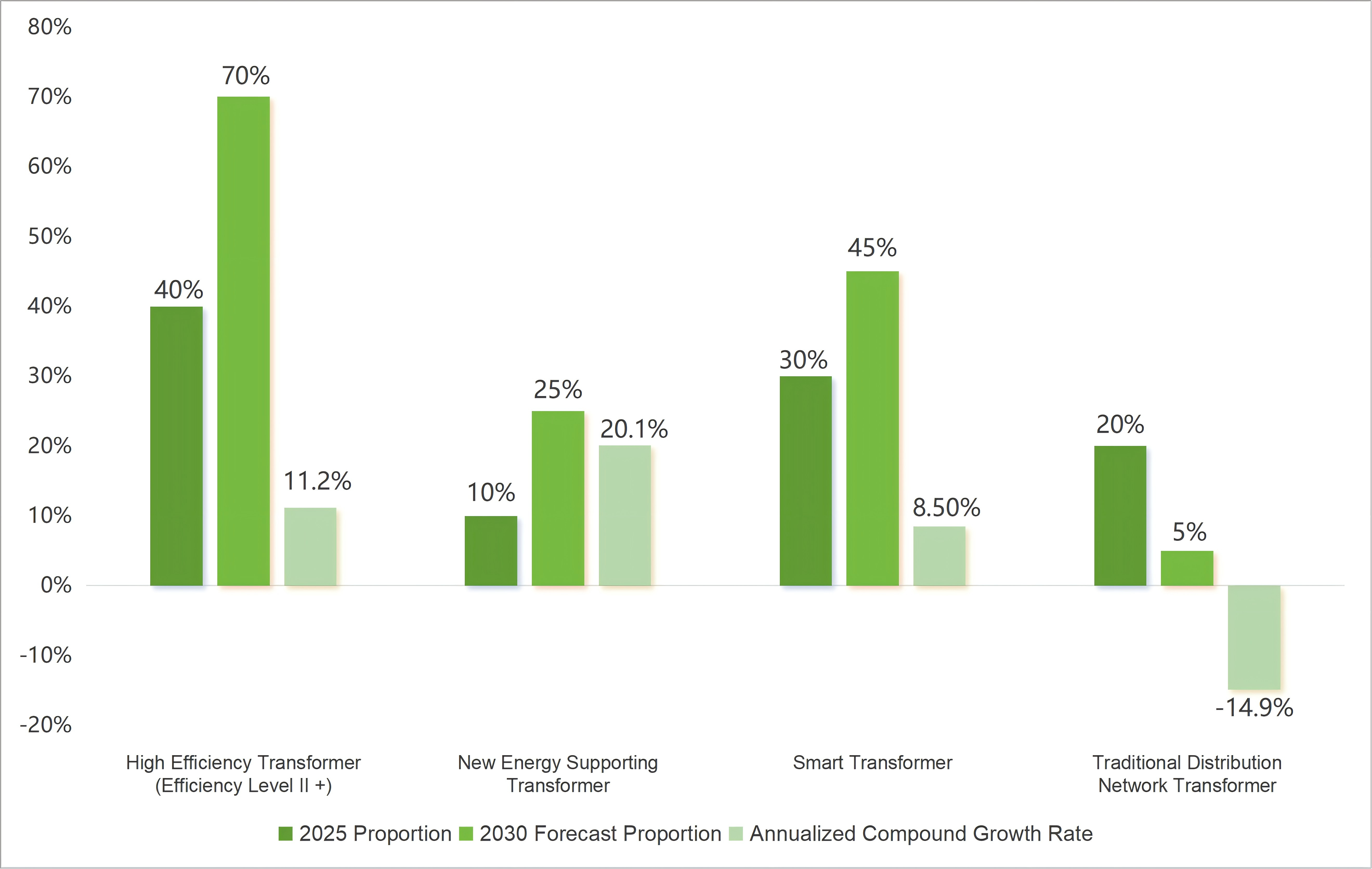

Figure 4. Forecast of Transformer Demand Trends in Iraq (2025-2030)
Huawan —— Your most trusted technical partner in Iraq's power reconstruction.
Whether facing explosion-proof challenges in oil drilling or energy efficiency upgrades in urban power grids, Huawan delivers the most professional and compliant transformer solutions.
Need product quotes for 100kVA-1000kVA projects in Iraq or COSQC cooperation processes? Click here to contact Huawan's technical team for one-on-one project selection services.
Q1: How do Huawan transformers avoid "overheating shutdown" in Iraq's extreme climate?
A1: Iraq's summer surface temperatures often exceed 60°C. Huawan specifically adopts 155-class NOMEX insulation paper and high-flash-point insulation oil, with a designed ambient temperature adaptation of 55°C. Our 400kVA model's temperature rise control far exceeds international standards at 50°C, ensuring full-load stable operation during peak power demand.
Q2: Can Huawan provide support for Iraq's mandatory COSQC certification?
A2: Yes. We understand that COSQC certification (compliant with IS 732/IEC 60076 standards) is critical for grid connection. Huawan maintains a sound quality management system (ISO 9001/CE) and will fully assist customers in preparing test samples, submitting factory technical documents and laboratory reports to efficiently pass the Iraqi Ministry of Electricity (MoE) access review.
Q3: What special conditions must transformers adapt to in Iraq? What are the core demand sectors and products for transformers in Iraq?
A3: High temperature resistance, sandproofing (IP65+ / anti-corrosion), service life ≥25 years, and explosion-proof and overload resistance for oil & gas/railway scenarios. Core demand sectors include power grids (high-voltage/distribution/smart transformers), oil & gas (explosion-proof/rectifier transformers), new energy (step-up/energy storage supporting transformers), and transportation (traction transformers).
Q4: Are Huawan products compliant with Iraq's 2026 energy efficiency new regulations?
A4: Proactive layout is our advantage. The Iraqi Ministry of Electricity plans to mandate "Efficiency Class II" starting from 2026. Huawan's full range of 100kVA-1000kVA products has completed energy efficiency upgrades, with no-load and load losses exceeding the new regulation requirements, ensuring your projects avoid equipment obsolescence due to policy changes over the next 5-10 years.
Q5: Is the maintenance frequency of Huawan transformers high in sandstorm environments?
A5: Extremely low. Our fully sealed corrugated oil tank design with IP65 protection rating completely isolates sand and dust from contaminating insulation oil. This means Huawan transformers can achieve 25 years of maintenance-free operation under normal working conditions, significantly reducing labor maintenance costs in remote areas or industrial zones of Iraq.
