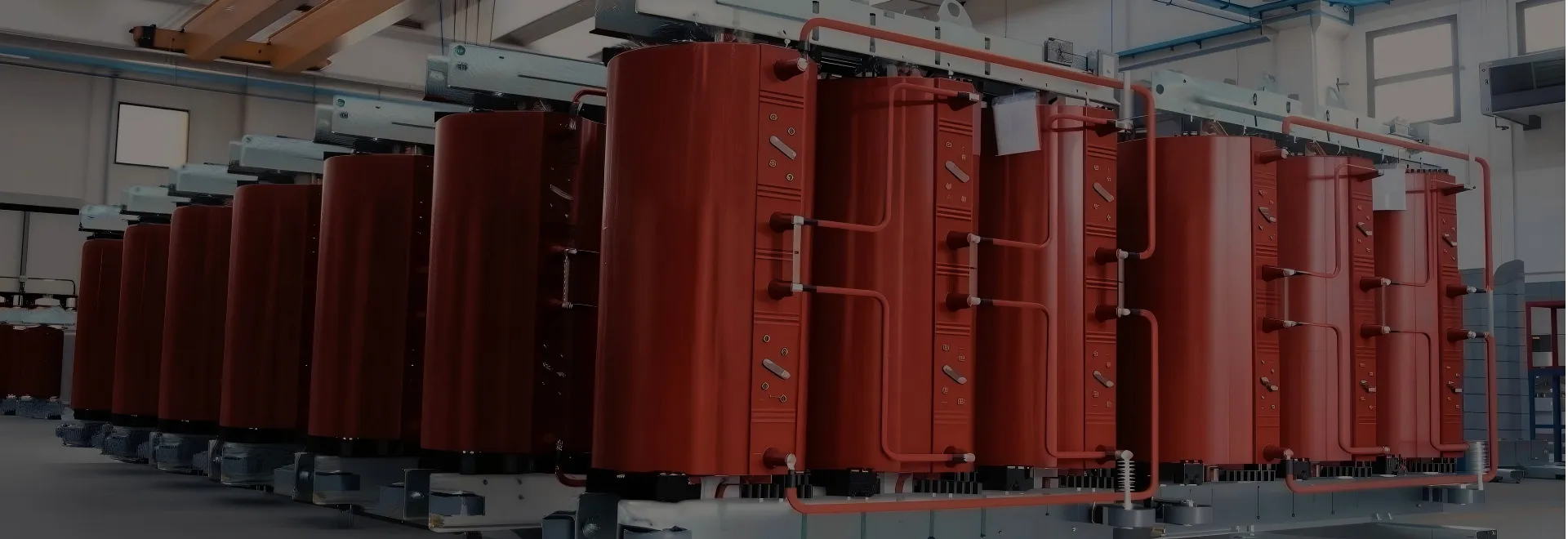

Dry Type Transformer

Name: Dry Type Transformer
Brand: Huawan New Energy Co. Ltd.
Availability: InStock

Huawan Dry Type Transformers provide a fire-safe, eco-friendly solution without oil spill risks. Ideal for populated/sensitive areas, they feature recyclable construction and reduced ownership costs through minimal maintenance. Certified to IEC, ANSI & ISO 9001 standards, our ≤35kV units deliver reliable performance in extreme conditions. Advanced engineering ensures superior quality and exceptional longevity.

Dry Type Transformer Price

Specifications of Dry Type Transformer

Table of SCB12 Series Dry Type Transformer Parameters

Rated Qwer (KVA)	Short-circuit impedance(%)	No-load loss(w)	load loss(w)	Transformer dimensions(mm)	Shell dimensions(mm)	Rail gauge(mm)
Rated Qwer (KVA)	Short-circuit impedance(%)	No-load loss(w)	load loss(w)	WDH	WDH	d1*d2
30	4	150	760	780×500×628	1400×1200×2200	300×400
50	4	215	1070	850X700×706	1400×1200×2200	400×600
80	4	295	1480	890X800×796	1400×1200×2200	400×700
100	4	320	1690	900×900×856	1400×1200×2200	400×800
125	4	375	1980	920×900×876	1400×1200×2200	400×800
160	4	430	2280	930×900×916	1400×1200×2200	400×800
200	4	495	2710	940×950×986	1400×1200×2200	450×850
250	4	575	2960	950×950×1057	1400×1200×2200	450×850
315	4	705	3730	1000×1000×971	1700×1300×2200	660×900
400	4	785	4280	1020×1000×1016	1700×1300×2200	660×900
500	4	930	5230	1140×1050×1049	1700×1300×2200	660×950
630	6	1040	6400	1230×1100×1086	1900×1400×2200	560×1000
800	6	1215	7460	1300×1100×1045	1900×1400×2200	320×1000
1000	6	1415	8760	1400×1100×1105	1900×1400×2200	820×1000
1250	6	1670	10370	1420×1200×1200	1900×1400×2200	820×1100
1600	6	1960	12580	1460×1200×1268	2200×1700×2200	820×1100
2000	6	2440	15560	1560×1200X1330	2200×1700×2200	320×1100
2500	6	2880	18450	1660×1300×1463	2200×1700×2200	820×1200

Table of SCB14 series dry type transformer Parameters

Rated Qwer (KVA)	Short-circuit impedance(%)	No-load loss(w)	load loss(w)	Transformer dimensions(mm)	Shell dimensions(mm)	Rail gauge(mm)
Rated Qwer (KVA)	Short-circuit impedance(%)	No-load loss(w)	load loss(w)	WDH	WDH	d1*d2
30	4	130	685	810×500×638	1400×1200×2200	300×400
50	4	185	965	880×700×786	1400×1200×2200	400×600
80	4	250	1330	910×800×808	1400×1200×2200	400×700
100	4	270	1520	930×900×856	1400×1200×2200	400×800
125	4	320	1780	930×900×866	1400×1200×2200	400×800
160	4	365	2050	960×900×936	1400×1200×2200	400×800
200	4	420	2440	970×950×956	1400×1200×2200	450×850
250	4	490	2665	980×950×1003	1400×1200×2200	450×850
315	4	600	3355	1040×1000×1016	1700×1300×2200	560×900
400	4	665	3850	1060X1000X1026	1700×1300×2200	660×900
500	4	790	4705	1170×1050×1026	1700×1300×2200	660×950
630	6	885	5760	1280×1100×1051	1900×1400×2200	660×1000
800	6	1035	6715	1330×1100×1085	1900×1400×2200	820×1000
1000	6	1205	7885	1390×1100×1155	1900×1400×2200	820×1000
1250	6	1420	9335	1440×1200×1230	1900×1400×2200	820×1100
1600	6	1665	11320	1530×1200×1301	2200×1700×2200	820×1100
2000	6	2075	14005	1620×1200×1396	2200×1700×2200	820×1100
2500	6	2450	16605	1690×1300×1508	2200×1700×2200	820×1200

Find more switchgear and transformer at Huawan.

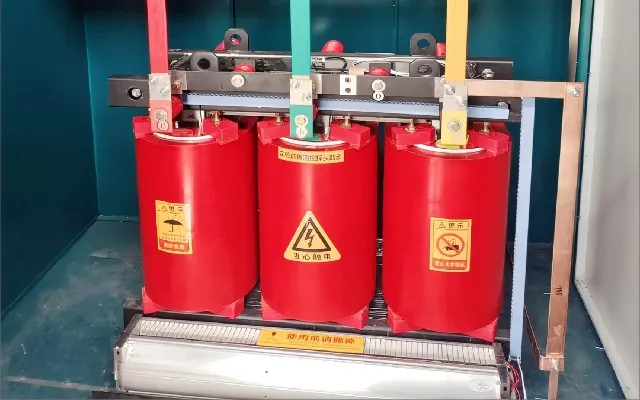

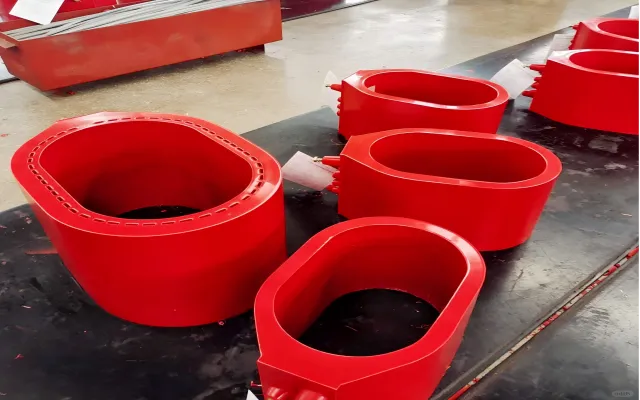

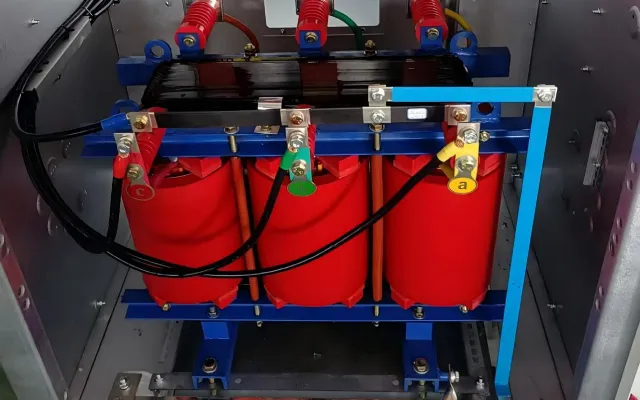

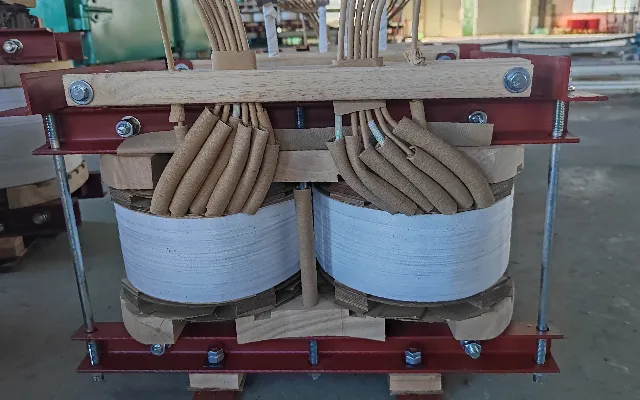

Features of Dry Type Transformer

Enhanced Safety

The dry type transformer features a flame-retardant dry type transformer design, eliminating fire or oil spill risks, making it ideal for indoor dry type transformer installations in populated areas, hospitals, and other sensitive dry type transformer applications.

Eco-Friendly Solution

Built with 100% recyclable materials and zero toxic fluids, the dry type distribution transformer minimizes environmental impact and disposal costs, offering a sustainable solution.

Low Lifetime Cost

Huawan dry type transformer cost is optimized with reduced installation and maintenance expenses compared to oil-filled units, delivering long-term savings for dry type transformer uses in various settings.

Global Compliance

Manufactured under ISO 9001 standards by trusted dry type transformer company Huawan, these dry type transformer types are certified to IEC/ANSI standards for voltages up to 35kV, ensuring reliability for both outdoor dry type transformer and indoor applications.

Dry Type Transformer Diagram

Illustrated Diagram of Dry Type Transformer Exterior
