50kVA Three Phase Oil Immersed Distribution Transformer

Huawan 50kVA distribution transformers are suitable for installation in residential areas and small commercial districts with dispersed and relatively stable loads, and can effectively support the regional power grid coverage.

Contact Download User Manual

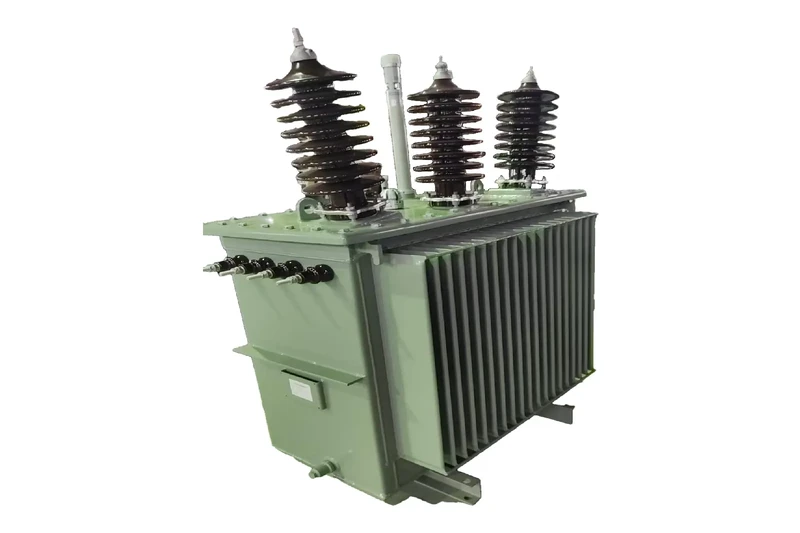

50kva three phase oil immersed distribution transformer

Specifications and Parameters

Rated Capacity	50 kVA
Rated Voltage	10/0.40 kV
Voltage Combination	10.5±2×2.5%
No-Load Loss	232 W
Load Loss	1120 W
Total Loss	1986 W
Frequency	60 Hz
Connection Group	Dyn5
No-Load Current	5.04 A
Impedance Voltage	4±10%
Insulation Class	E
Cooling Method	ONAN/KNAN
Average Temperature Rise of Oil Top Layer	60 K
Average Temperature Rise of Windings	65 K
Winding Material	Copper

Transformer and Switchgear

Need a Quick Help?

Ask Our IT-experts and get answer within 24 hours

Contact

Drawing and Accessories

three phase oil immersed transformer drawing

three phase oil immersed transformer accessories

Factory Production Photos
