1500kVA Three Phase Oil Immersed Distribution Transformer

The 1500kVA three-phase oil-immersed transformer has a relatively large capacity, making it suitable for medium-to-large industrial production, commercial centers, public facilities, and regional energy distribution where high power demand is required.

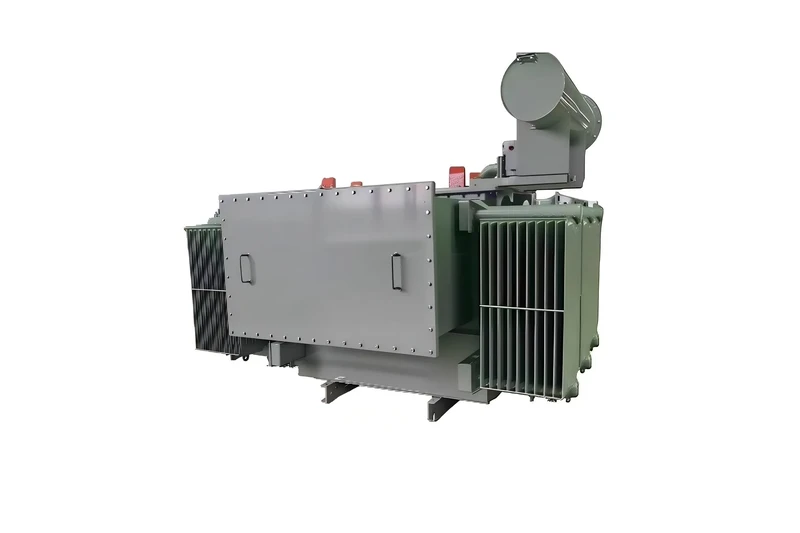

1500kVA three phase oil immersed distribution transformer

Specification Parameter Table


ParameterDetails
Product modelS11-1500/22
Rated Capacity1500 kVA
Rated Voltage22 kV / 0.69 kV
Tap range22 kV±2×2.5%
Cooling methodKNAN
Vector groupYNd11
Rated current39.4 A / 1255 A
No-load LossPo ≤ 1680 W
No-load CurrentIo ≤ 0.6%
Load Loss (at 75°C)Pk ≤ 15900 W
Short-circuit Impedance6%
Insulation levelHV 24kV / 125kV Li/50kV AC, LV Um=5kV.



Transformer and Switchgear
Need a Quick Help?
Ask Our IT-experts and get answer within 24 hours
Contact

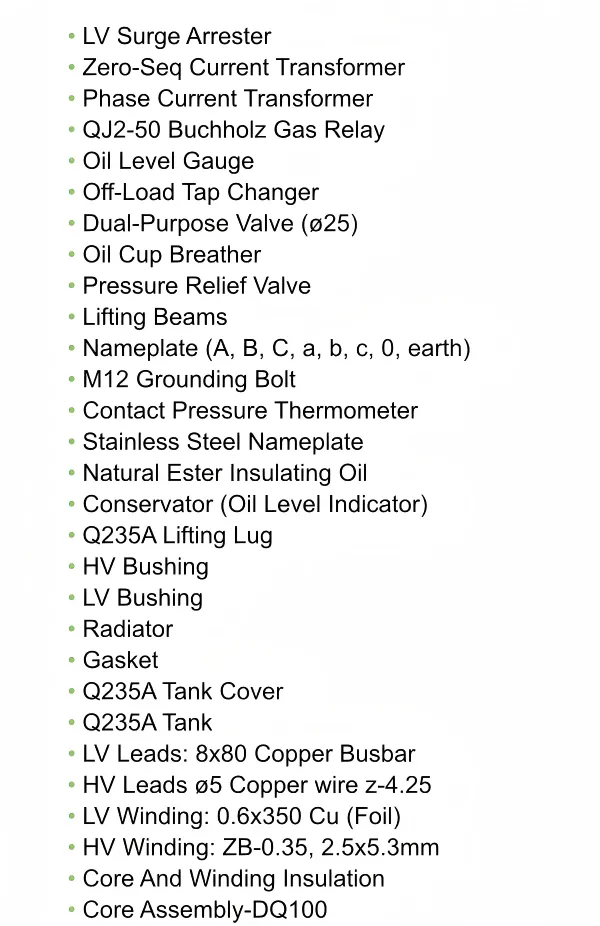

Drawing and Accessories
